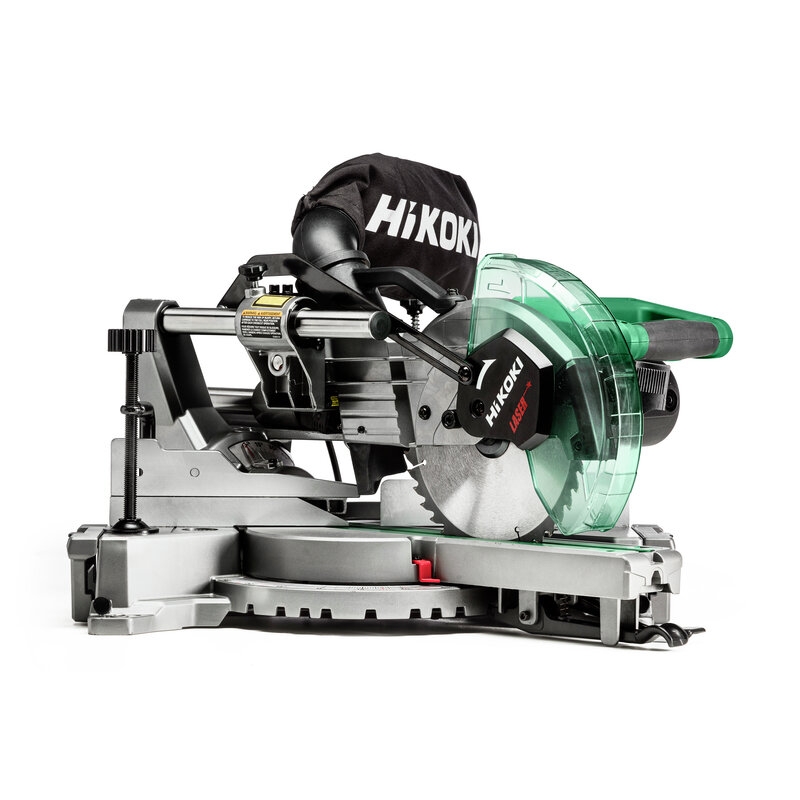

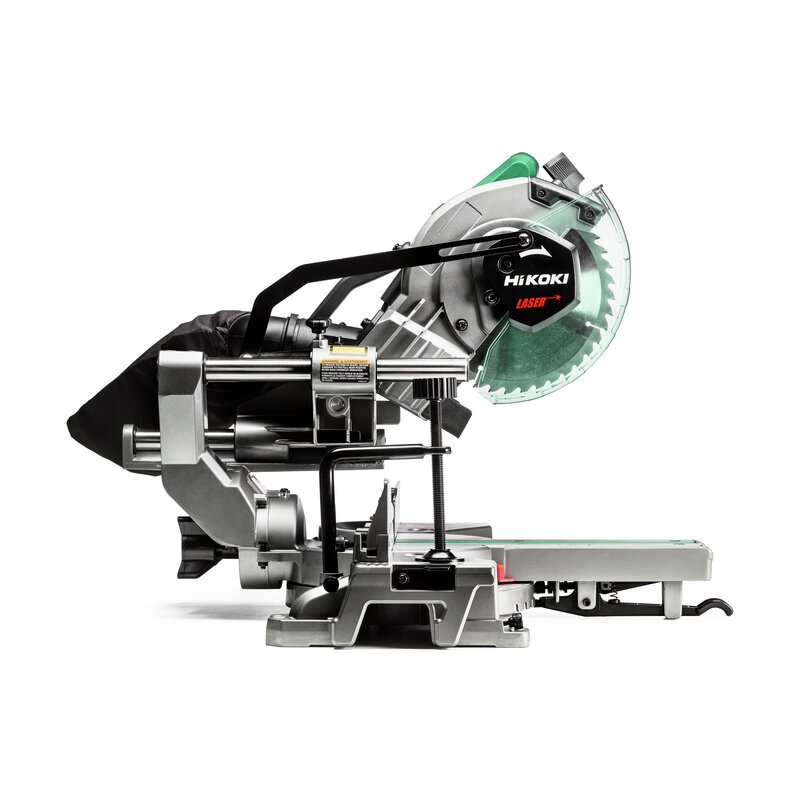

HiKOKI C8FSHG Slide Compound Miter Saw
The HiKOKI C8FSHG Slide Compound Miter Saw is designed for precise and efficient cutting in various applications. This compact and durable tool features a powerful 1,100W motor and a 216 mm blade, making it ideal for professional use. The saw's compact slide system allows for efficient cutting in tight spaces, with the motor head sliding along fixed rails with zero rear clearance. The adjustable sliding sub-fence provides increased stability to support workpieces, while the extendable table can be adjusted using a measuring guide.
Technical Specifications:
– Blade Diameter: 216 mm
– Max Cutting Capacity (H x W):
– Bevel 0°: 65 x 280 mm (with anchor plate), 54 x 305 mm (without anchor plate)
– Bevel 45°: 38 x 280 mm (with anchor plate), 26 x 305 mm (without anchor plate)
– Miter 45°: 65 x 203 mm (with anchor plate), 54 x 210 mm (without anchor plate)
– Miter Cutting Angle: 0° – 48° (left and right)
– Bevel Cutting Angle: 0° – 47° (left), 0° – 2° (right)
– Power Input: 1,100W
– No Load Speed: 5,300/min
– Dimensions: 528 x 725 x 495 mm
– Weight: 13.8 kg
– Standard Accessories: Blade, Miter Handle, Dust Bag, Vise Assembly, Holder, Blade Spanner
Key Features:
– Powerful 1,100W motor for efficient cutting
– Compact slide system for cutting in tight spaces
– Adjustable sliding sub-fence for increased stability
– Extendable table with measuring guide
– Laser marker for precise cutting
